许多公司，特别是在制药行业，定期使用洁净室和孤立的实验室。对于大多数人来说，洁净室最重要的要求之一是能够去除标本或其他材料而不会影响其隔离，并且随着洁净室的使用增长，这一要求只是变得更加重要。来自Terra Universal的Biosafe®通过允beplay体育最新下载入口许轻松转移而不会交叉污染。

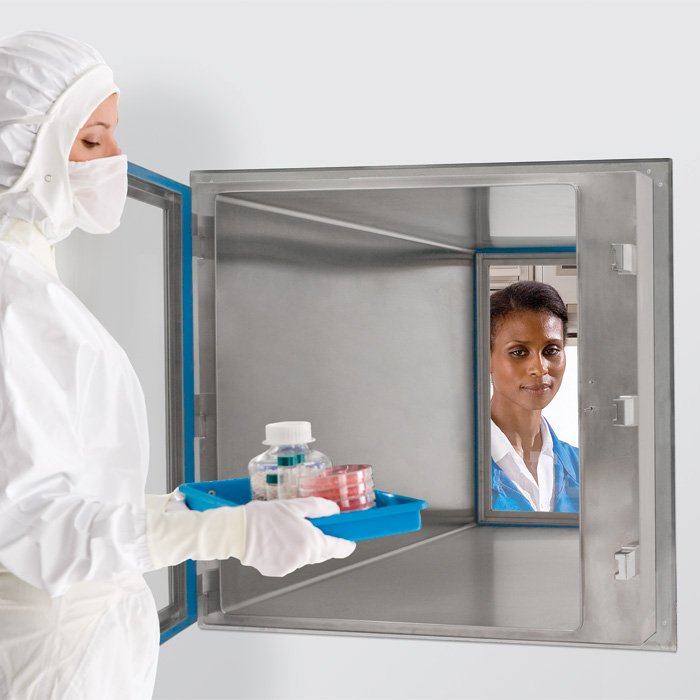

The basic principle behind a Pass-Through or Pass-Through Window is simple. Like an airlock, it is a chamber installed into a wall separating two rooms with doors on both sides. Each door will only open when the other door is sealed, ensuring that there is never a direct connection between the clean and dirty sides.
Cleanliness is not a constant, and one of the most important features of any pass-through system is its ease of sterilization. Right angles and plated hardware can easily become microbial breeding grounds, and running the interlock hardware through the main chamber just adds another level of complexity and layer of difficulty to the cleaning process.
泰拉Universal BioSafe Pass-Throughs are built with ultra-smooth stainless steel surfaces, so that they can be cleaned quickly and easily. Smooth radius interior curves ensure that there is nowhere for microbes or other contaminants to build up inside the chamber. All Terra Universal BioSafe Pass-Throughs use continuous seam welds to produce a crack-free interior surface for ease of cleanup.
根据买方的需求或应用，Biosafe通过304 SS或316 SS提供。304 SS是大多数用途的绝佳选择，而316 SS具有更好的腐蚀和抗氧化性，使其更适合与更多的反应性化合物一起使用。尺寸范围从小到12“x 12”x 12“，最多为27.5”x 24“x 50”为最大的模型。所有Biosafe Pass-over都有一个无唇设计，以最大限度地清除间隙和腔室内空间的有效使用。买家还可以选择内部机架来支持不锈钢架，可单独提供。接地端子有助于防止静电堆积。
Support brackets can be mounted on the wall on the “dirty” side to help support the pass-through, especially the deeper ones. Terra Universal recommends that all 36” deep models use these support braces to ensure stability in use.
The key to any pass-through is the door; the chamber itself is easy, but the doors have to both open easily and maintain a seal when closed. Terra Universal offers two kinds of door, standard doors with tempered glass set in stainless steel frames or optional solid stainless steel doors. Each door includes a BioSeal elastomer edge seal made from polyurethane. This seal eliminates the need for an adhesive gasket, preventing outgassing, which can contaminate samples or specimens. The doors are also removable, so they can be sterilized in an autoclave, or changed when necessary.
互锁确保两个门无法同时打开。Terra Universal而不是将其运转通过清洁室，通过自己的窄型舱室运行互锁，保持其孤立。beplay体育最新下载入口每个互锁被额定抵抗高达200磅的力以保持密封并防止它们被强制开放。
Any organization that uses cleanrooms can benefit from Terra Universal’s BioSafe Pass-Throughs. Prospective customers can either select from the wide range of existing sizes or discuss a custom installation to meet their specific needs.
泰拉Universal is the leading expert in the design and fabrication of ISO rated cleanrooms, furnishing and supplies.
