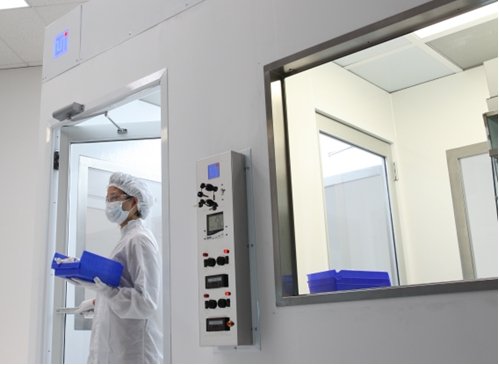

嵌入式洁净室窗户的优点

类别： Cleanrooms

Windows give us a view of the environment on the “other” side of the wall, whether lookingoutfrom an enclosed room, or looking into it. In a controlled cleanroom, windows are a source of ambient light, and help to “expand” the space, making it feel less restrictive and relieving worker claustrophobia. Practically speaking, they also allow personnel to see when the critical environment is in use, and what activities are being performed.

Windows are more complex than a simple pane of glass. Anyone responsible for wiping down a cleanroom can appreciate how troublesome nooks and crannies can be! Contaminating particles can collect on framing, sills and fasteners, complicating the sanitizing process. Terra’s stainless steel BioSafe® cleanroom windows are designed to reduce cracks and horizontal surfaces, making disinfection easier and faster.

单窗帘

Single-pane window, with flush-mounting on the inner, “clean” side.

在其最简单的形式中，独立的洁净室可能被未分类的空间包围，没有人员要求的实验室或面衣（仓库中的模块化洁净室）。封闭的空间必须是符合iso的，但外部不需要相同的处理。标准壁厚（范围从3.4“到5.5”）是窗户窗格（0.25英寸至1“）的许多次数。窗框框架补偿了内置壁架的尺寸差异：具有尖角的平面。它们是空中灰尘和颗粒的理想着陆点，在受控空间中要避免的东西。

解决方案？Terra的单窗洁净室窗户采用单面冲洗架框架。将窗口安装在洁净室内的齐平安装的框架，以及带有面向不受控制空间的壁架的标准框架。窗玻璃为0.5英寸 - 为耐用性，并帮助维护洁净室的受控气氛（更厚的窗格帮助维持温度）。嵌合安装的框架靠在墙壁上，只有小，锥形突起，不吸引颗粒，易于擦拭。

窗口的安装在几分钟内完成。一旦墙壁切出框架，两个窗框件架悬挂在一起;一件略大于另一件，包围套筒。窗玻璃牢固地固定到位，夹在两个不锈钢框架之间。框架是为了适应房间的特定壁厚。

Double-Paned Windows

Double pane window: frame is flush-mounted on both sides of the wall.

但是，维护受控环境的多套房洁净室bothsides of the window? Terra also designed a double-pane, double-flush window withnoledges or sills to clean. These windows feature two 0.5” window panes, increasing the temperature insulating properties. Frames in both rooms are flat against the walls, reducing troublesome cleaning.

When installing the frames for the double-flush window, the two pieces snap together (ball studs fit into pre-drilled holes), again sandwiching the two 0.5”panes of glass for a secure hold. To ensure the proper fit, Terra needs your wall thickness: it will dictate the exact depth of the window frame components.

Window Pane Materials

五种材料用于透明洁净室窗玻璃：

Tempered glass: the ultimate clean material! Non-porous and non-shedding, with exceptional strength and clarity, glass stands up to all cleaners.

Biosafe®粉末涂层嵌入式洁净室窗口由钢化玻璃制成。
Fire-rated glass：涉及易燃液体或粉末的应用可能需要用UL防雷级额外保护材料。洁净室墙壁由玻璃纤维增强塑料（FRP）制成，也符合此要求。
SDPVC: static-dissipative polyvinyl chloride controls electrostatic discharge, and prevents particle adhesion from static charges. The dissipative layer is molecularly embedded in the plastic, so will not peel over time.
Polycarbonate: another strong plastic material that resists damage from common chemicals. Polycarbonate is also shatter resistant
丙烯酸纤维: this material offers strength, clarity and economy, but be careful with chemicals such as alcohol, which can damage it.
