Ideal for FDA and GPA compliant labs.|6925-90displayed

Mills

Mill, M 20 Universal, 120V

Removable grinding chamber that is easy to clean
Double-walled, stainless steel grinding chamber for increased durability
Additional grinding chambers can be operated with a single drive for increased efficiency

•Adjustable Speed Control:No

•Volume:250 ml

•Maximum Speed:20000 rpm

•Cooling Method:Passive Cooling

•Feature Pack:GMP Compliant

•Grinding Procedure:Impact/Cutting

•Feed Hardness:5 mohs

•Feed Grain Diameter:7 mm

•Motor Output:260W

•Manufacturer SKU:1603603

•Unit of Measure:EA

Manufacturer SKU: 1603603

Manufactured By: IKA

Warranty: 2 years parts and labor

Need Help?

(714) 578-6100

Mon - Fri, 5:30 AM - 5:30 PM, PST

EmailChat

Want a quote quickly ?

Submit a QuickQuote request

Summary

• Removable grinding chamber that is easy to clean

• Double-walled, stainless steel grinding chamber for increased durability

• Additional grinding chambers can be operated with a single drive for increased efficiency

• Includes: M 20 Universal mill, M 21 beater (SS) and M 20.1 Process type: batch

• Motor rating input: 450 W

• Circumferential speed max.: 72 m/s

•满足硬度范围:5 (M 21刀)9摩氏(M 22 cutter)

• Material beater/cutter: stainless steel 1.4034

• Material milling chamber: stainless steel 1.4301

• Mill feed can be cooled in milling chamber with dry ice

• Mill feed cannot be cooled in milling chamber with liquid nitrogen

• For impact and cutting grinding of laboratory materials

• M 21 stainless steel blade included with delivery

• Ultimate fineness from 1-80 µm

• Fixed speed ideal for FDA and GMP compliant labs

Specifications

•Adjustable Speed Control:No

•Volume:250 ml

•Maximum Speed:20000 rpm

•Cooling Method:Passive Cooling

•Feature Pack:GMP Compliant

•Grinding Procedure:Impact/Cutting

•Feed Hardness:5 mohs

•Feed Grain Diameter:7 mm

•Motor Output:260W

•Manufacturer SKU:1603603

•Unit of Measure:EA

Helena

•Electrical Specifications:115 V, 550 W, 60 Hz

•Weight, Product:14.55 Lbs

•Dimensions, Product:19" W

•Weight, Shipping:19 lb

•Package Type:Box

Popular Accessories

For a full list of accessories, select a product then clickChoose Accessorieson that product page.

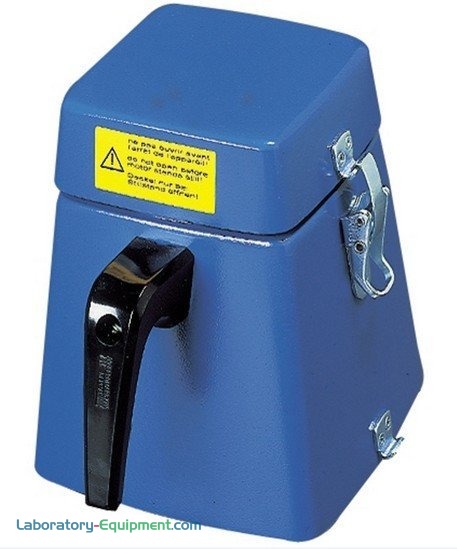

M 20.1 Grinding chamber

M 20.1 Grinding Chamber has a 250 ml capacity and a double-walled stainless steel interior; for use with M 20 Universal Batch Millc
M 21 Spare cutter, stainless steel

Stainless steel M 21 Spare cutter crushes material with a Mohs 5 hardness; compatible with M 20 Universal Batch Mill
M 22 Hard metal cutter, Tungsten Carbide

Made with Tungsten Carbide, the M 22 Hard Metal Cutter crushes hard, brittle samples with a Mohs 9 hardness; compatible with M 20 Universal Batch Mill
M 23 Star-shaped cutter, Stainless steel

Stainless steel M 23 Star-shaped cutter for use with M 20 Universal batch mill crushes fibrous substances, plastics, vegetation and materials with low specific weight
